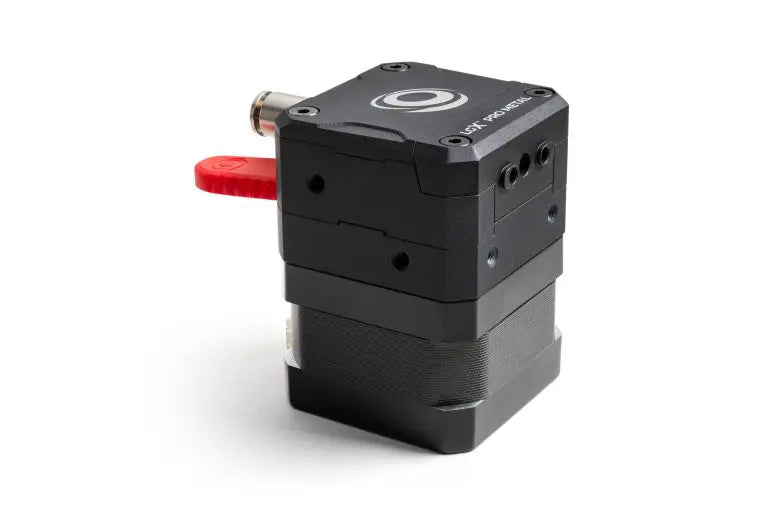

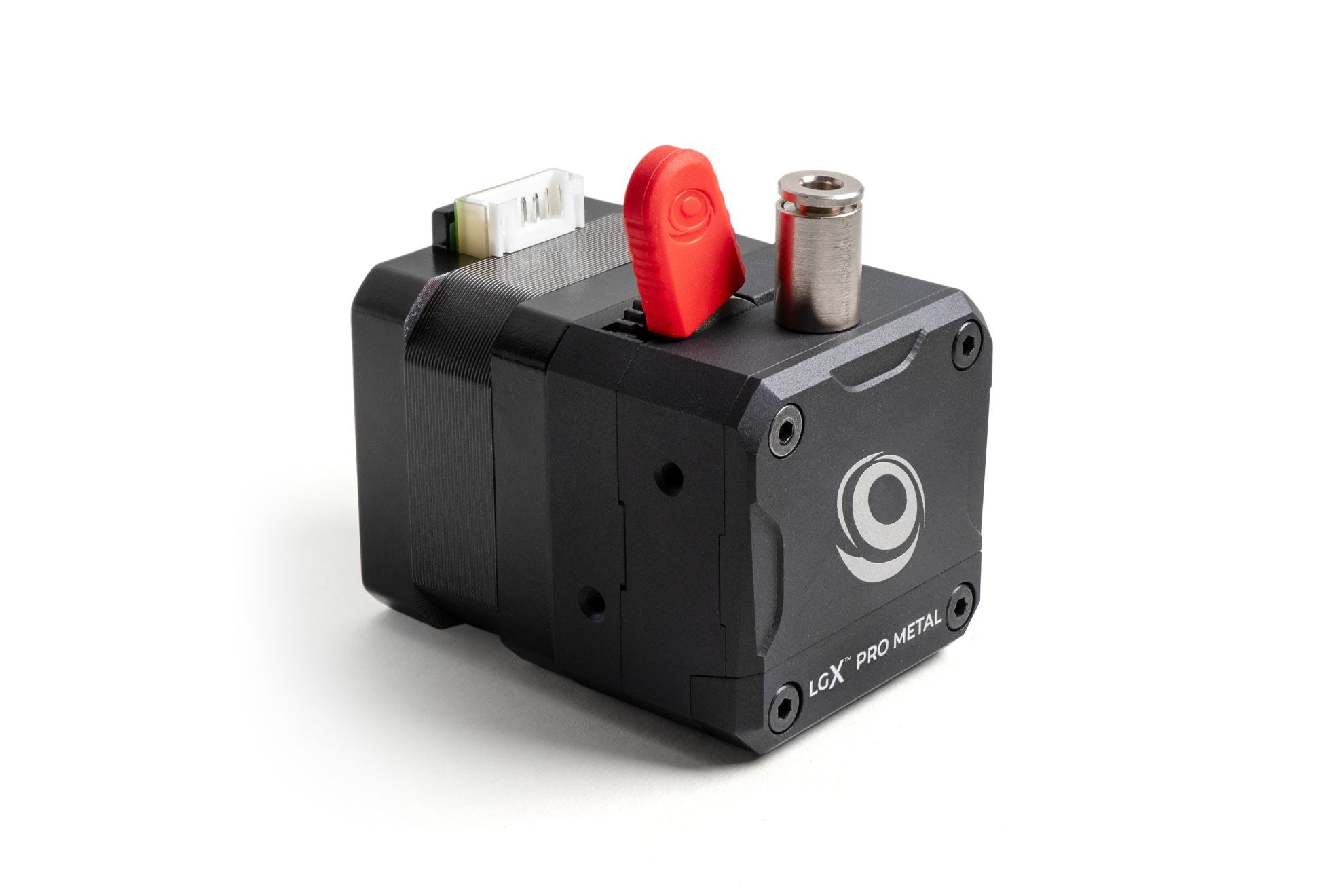

LGX PRO Metal 1.75 eXtruder

A full metal stronger and more robust LGX Large Gears eXtruder for industrial and high temperature applications with 1.75mm filaments.

• Harder : steel drive train;
• Faster : higher max feed rate;
• Stronger : more push force;
• Tougher : Aluminum housing;
• Cleaner : sober design.
• Even Better!

Description:

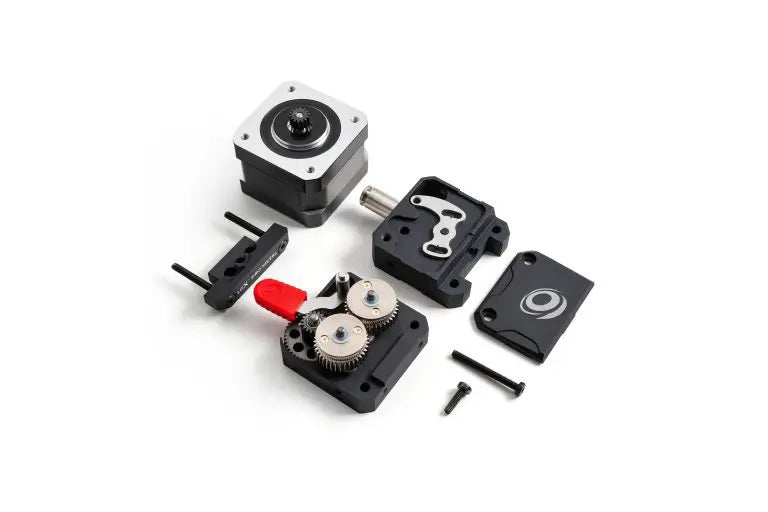

Each LGX® Pro Metal 1.75 extruder is supplied with:

• 1x LGX® Pro Metal 1.75mm feeder;
• 1x Custom Nema17 30mm pancake stepper motor;
• 1x Metal Push-in fitting M7 4mm;
• 1x 2mm Hex Key (recommended tool);
• 1x Powered By Bondtech sticker.

Also shipping with additional accessories:

• 4x M3x23 mm Stud with 5mm Hex with M3x4 thread;
• 30mm PTFE tube to use in the Direct Drive Interface Plug.

This extruder only supports 1.75 mm size filament.

The LGX® Pro Metal eXtruder uses Bondtech’s new Dual Drive Technology based on large drive gears.

10 cool features of the Bondtech LGX Pro Metal :

• Aluminum housing
• Strong 30mm stepper motor
• Larger drive wheels, for increased filament grip;
• New filament pre-tension lever – open + 4 positions – for repeated results;
• Multi-function interface socket, for tool or application quick swap;
• Compact, light & symmetric design, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;
• Full Hardened Steel Drive Train;
• Support longer hotends with the Aluminum Interface Plug;
• More protection against dust or particle saturated industrial environments.
