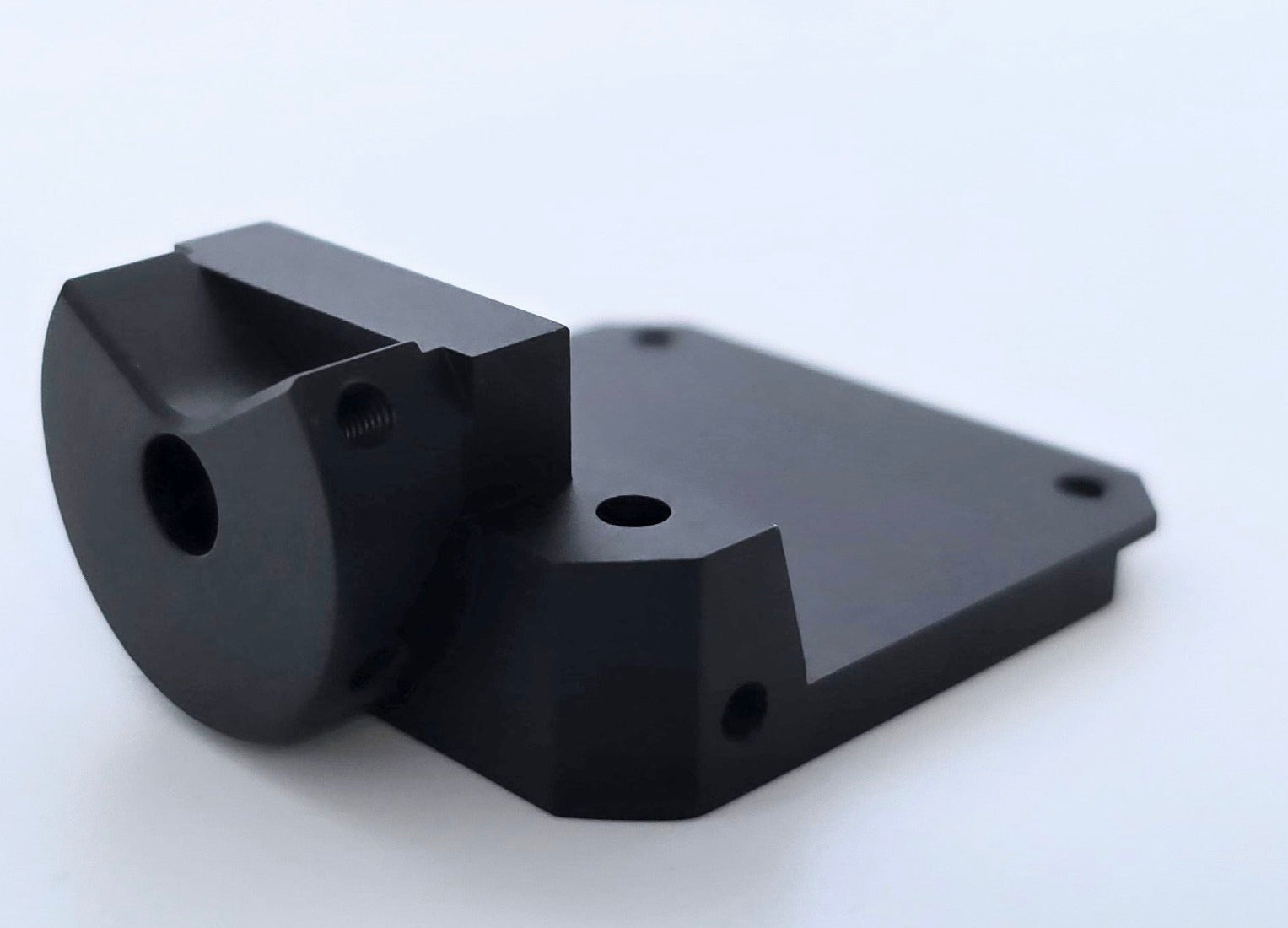

LGX CHAMP Adapter: Chube Conduction Heatsink

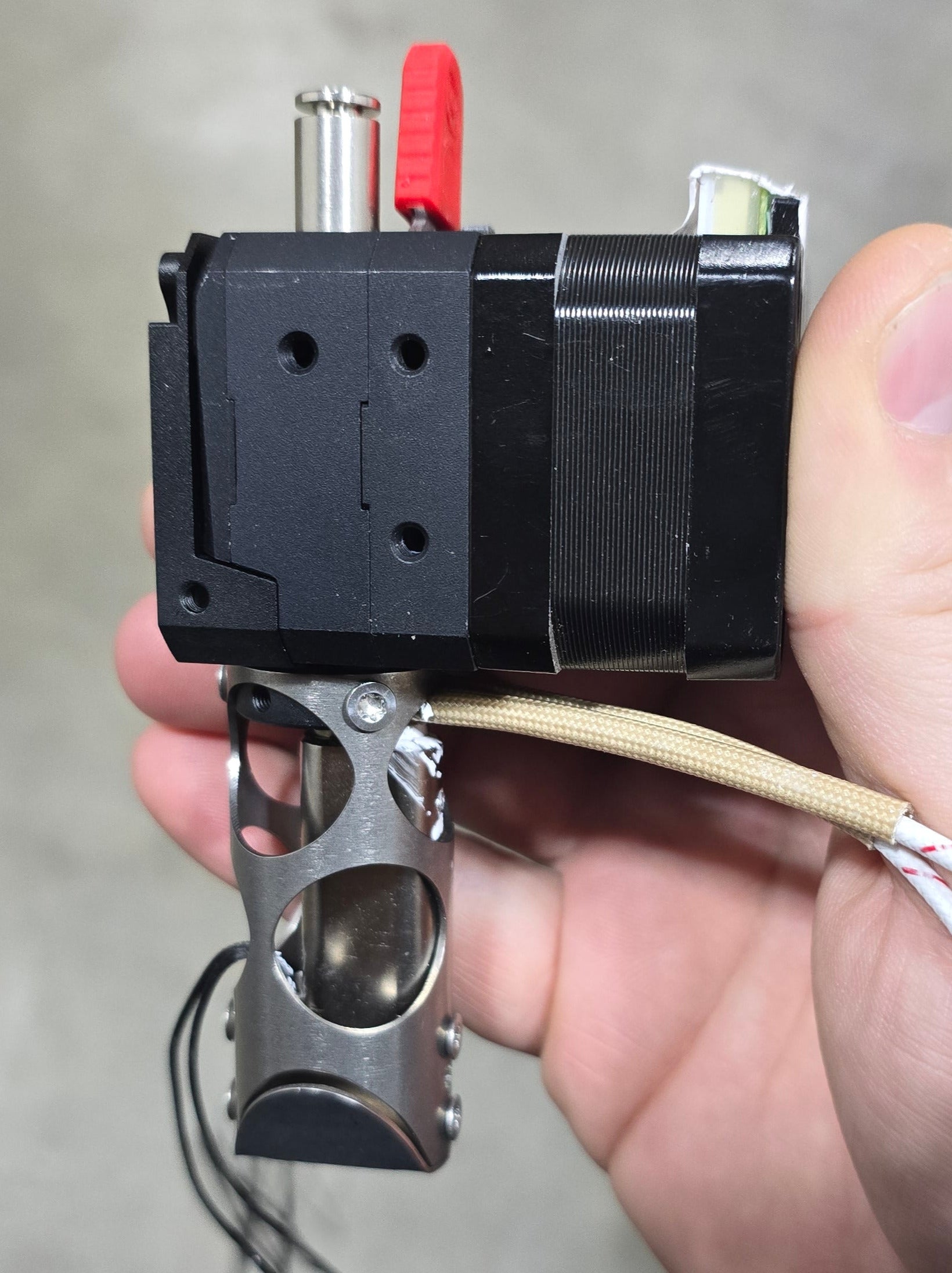

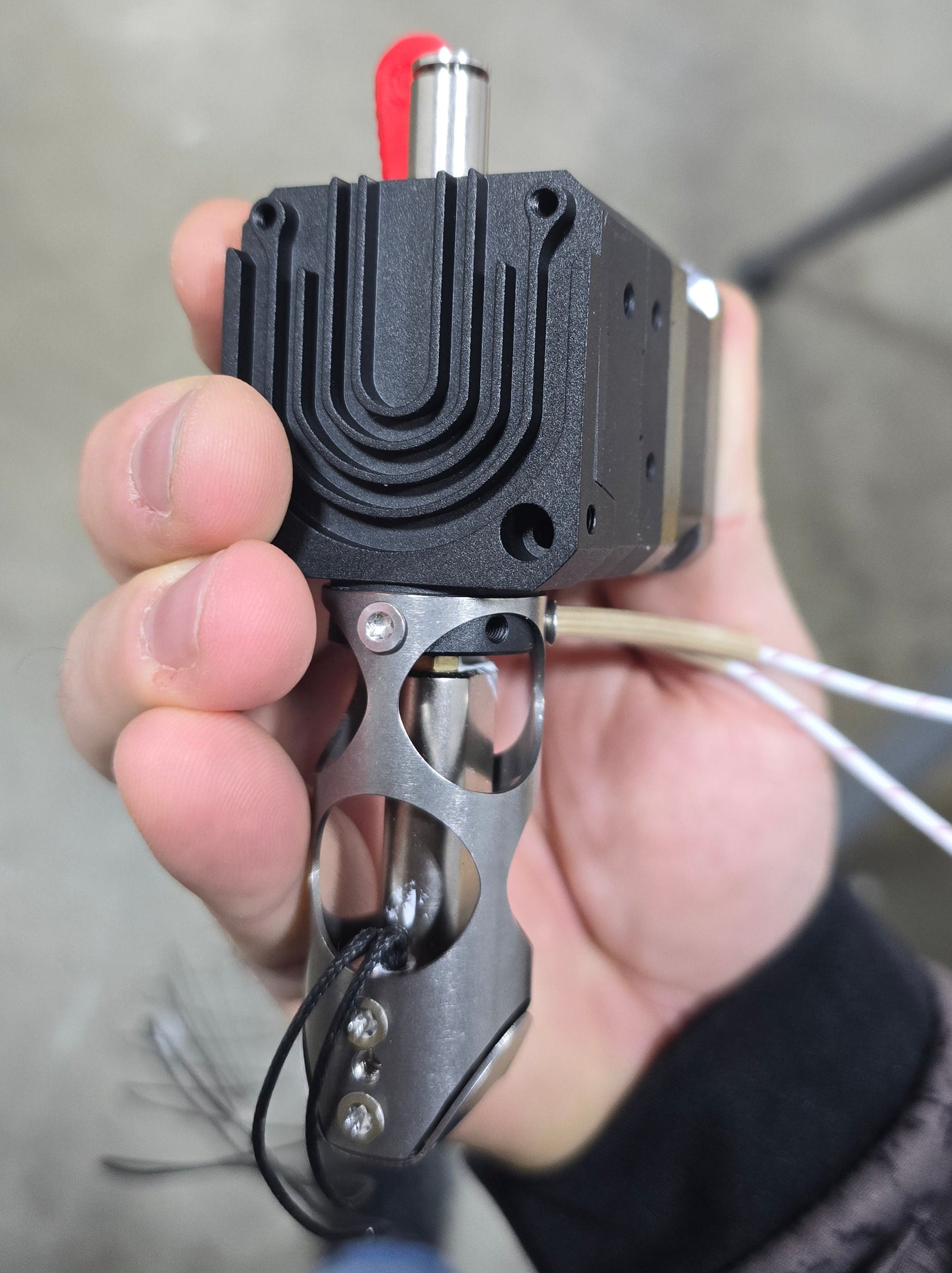

Compatible with Chube Conduction, the LGX CHAMP Adapter provides a direct-mount option for LGX users. This adapter is perfect for achieving ultimate flow and stability by combining Chube Conduction with the Bondtech LGX Pro or Pro Metal.

Features:

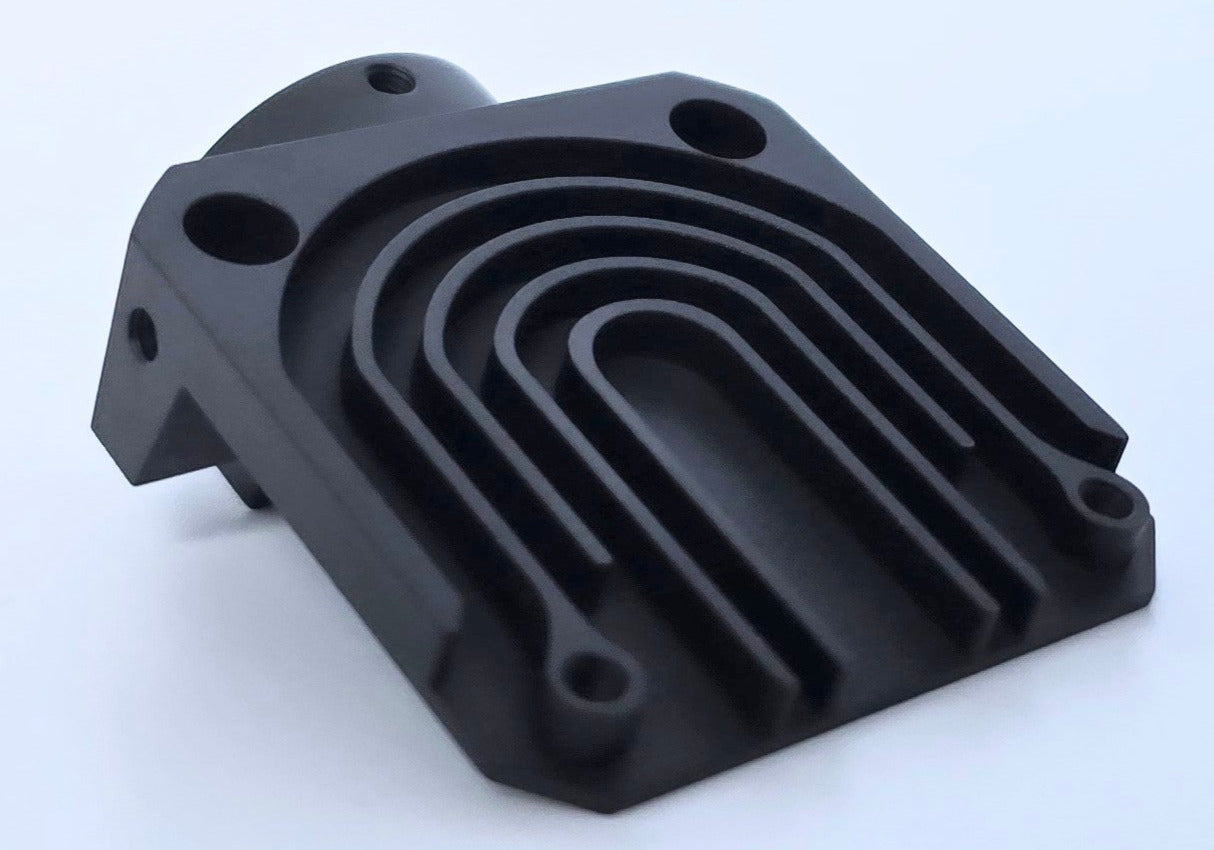

• Built-in Heatsink for Chube Conduction
• Qualifies as the extra metal mount required for Chube Conduction
• Supports 40mm fan for cooling both extruder and hotend!

Use:

1. Remove your Chube Conduction's heatsink. There are 3 torx screws holding it in.

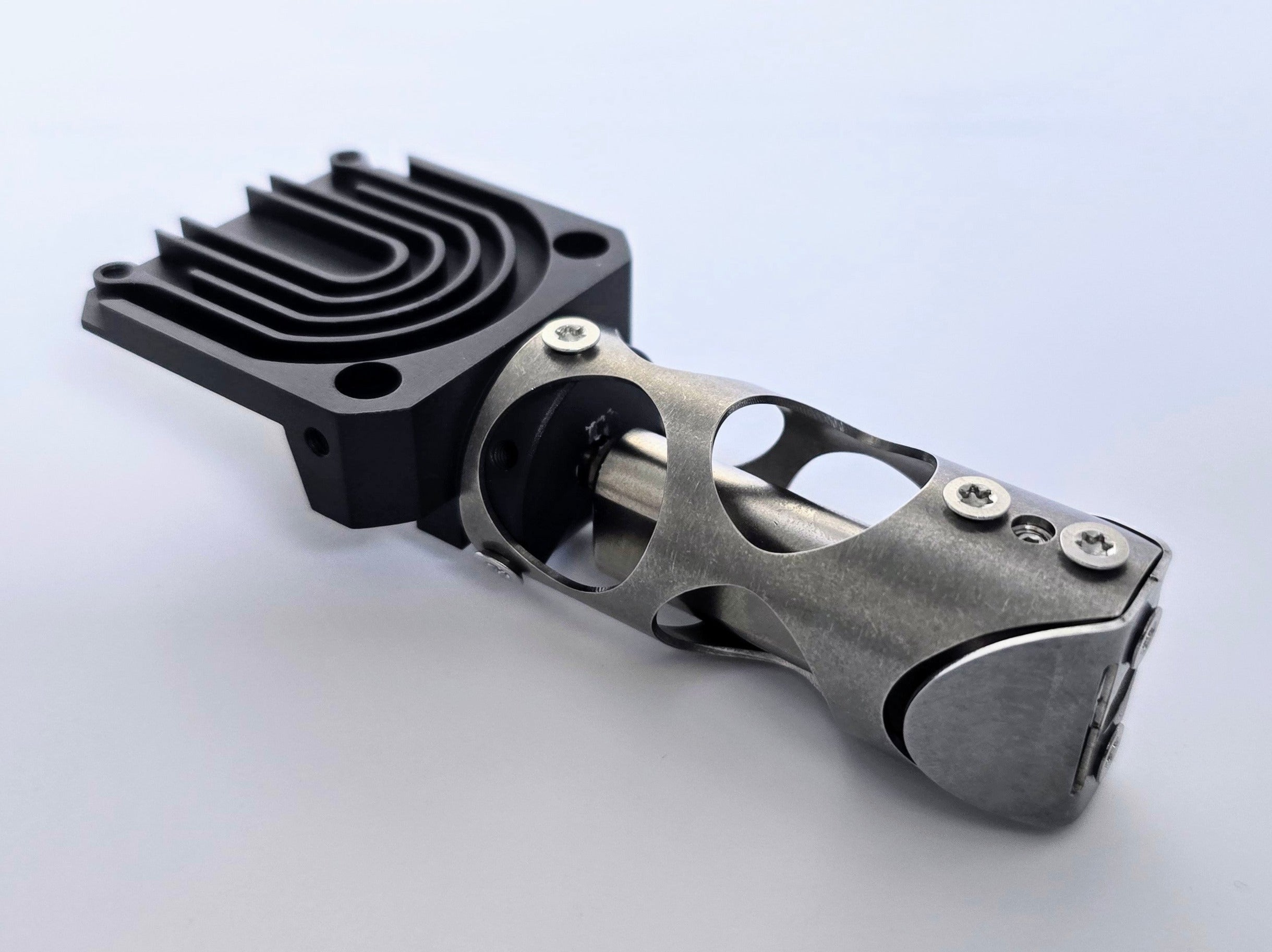

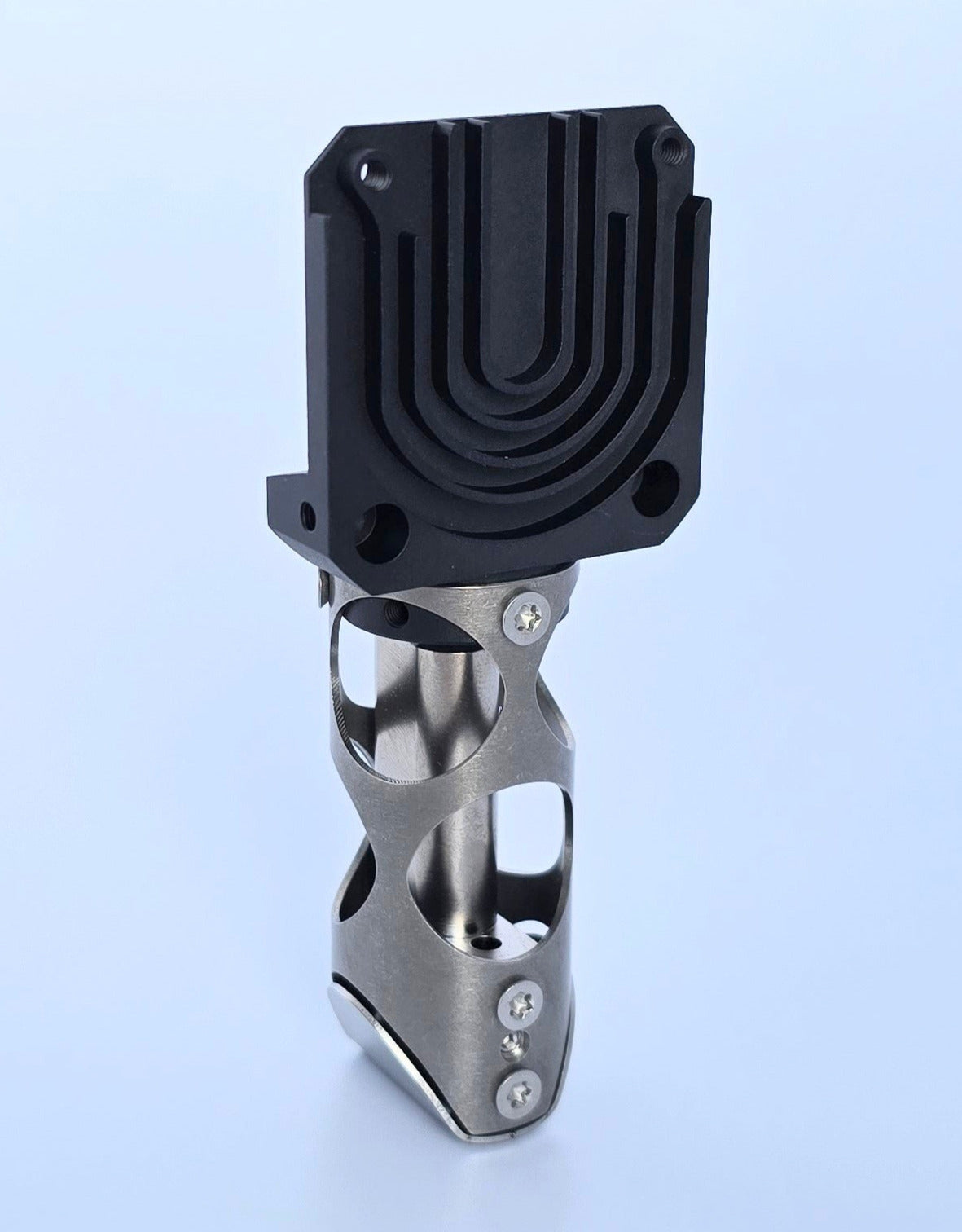

2. Insert the part of the adapter that resembles the original heatsink.
3. Center the holes on the CHAMP adapter on the Chube's shroud.
4. Reinstall the 3 torx screws. Be sure to tighten fully.

Integration cad here

Note: in order for your heater to be properly installed, be sure that the open part of the sink aligns with the designated cutout on Chube's shroud.
